SpaceGAIN CAT6 UTP Haakse Patchkabel

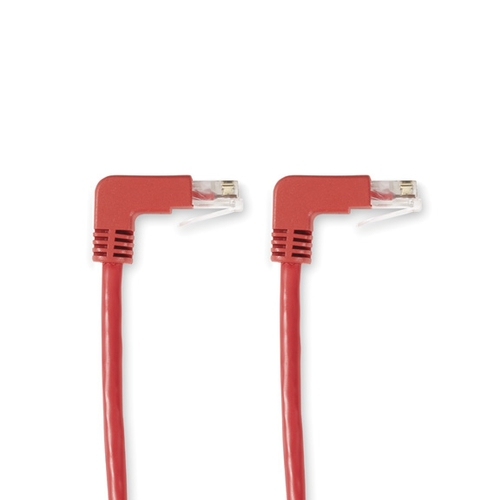

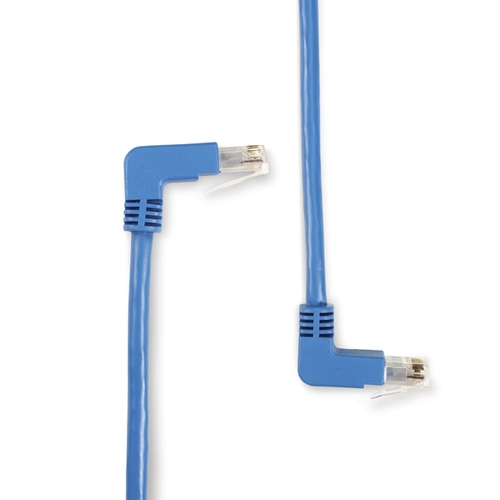

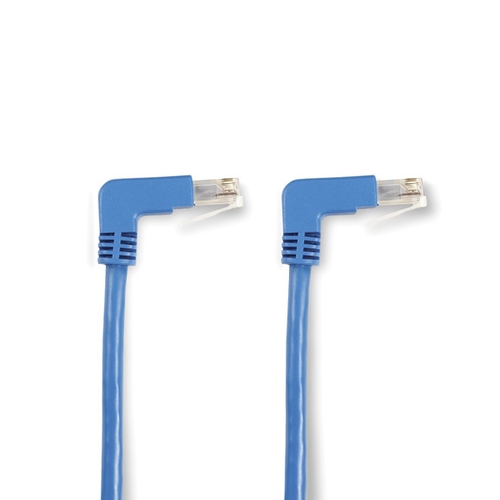

Black Box SpaceGAIN CAT6 patch cables are the perfect solution for making Gigabit Ethernet connections in applications where space is in short supply. With these angled connector cables you can save up to four inches of space in crowded cabinets, or make tight wallplate connections behind furniture and equipment. And with options available in combinations of Down-Up, Down-Down and Down-Straight connectors, you can choose the cable that suits your installation best. These cables are constructed to meet or exceed CAT6 standard 250-MHz performance, ensuring the transmission of your voice, data, audio/video and/or PoE signals. And with a robust four-pair 24-AWG construction featuring 50-micron gold-plated contacts for superior conductivity, these cables make for an ultra-reliable solution that you can count on to perform.

Approvals RoHS, CE, UL/cUL
Standards TIA/EIA-568-C.2 Category 6
Connector 1 RJ-45 Male
Connector 2 RJ-45 Male
Connector Plating 50u
Cable Jacket Type CM PVC
Cable Type Stranded
Conductor Gauge 24 AWG Shielded UTP
Snagless Connector No
Frequency Up to 250 MHz
Attenuation (Maximum) 39.4dB @ 250MHz
Impedance 100+/-15 ohms
NEXT (Minimum) 38.3dB @ 250MHz
PS-NEXT (Minimum) 36.3dB @ 250MHz
Return Loss (Minimum) 15.3dB @ 250MHz
