Agility DVI, USB, and Audio Extenders over IP
Photo may vary from actual product
ACR1000A-T-R2: Transmitter, (1) Single link DVI, DVI-D, 2xAudio, USB 2.0, RS232
ACR1000A-T-R2: Transmitter, (1) Single link DVI, DVI-D, 2xAudio, USB 2.0, RS232
ACR1000A-R-R2: Receiver, (1) Single link DVI, DVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1000A-R-R2: Receiver, (1) Single link DVI, DVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1012A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232
ACR1002A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232

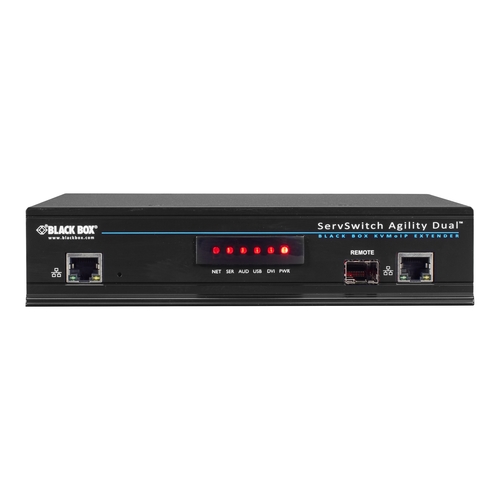

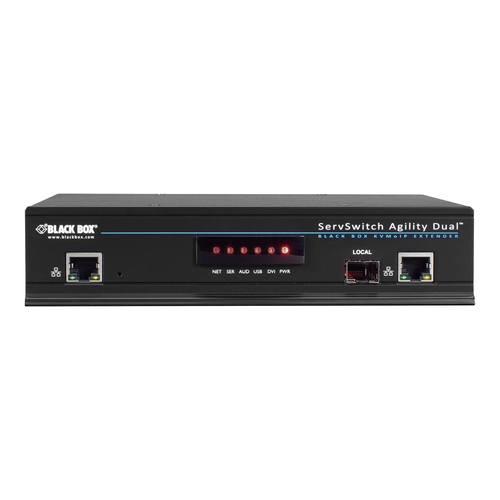

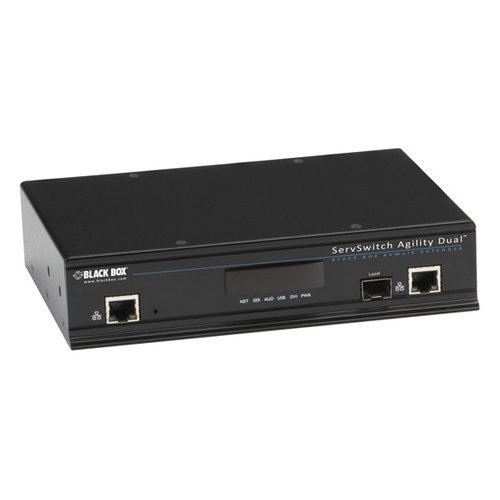

ACR1002A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232

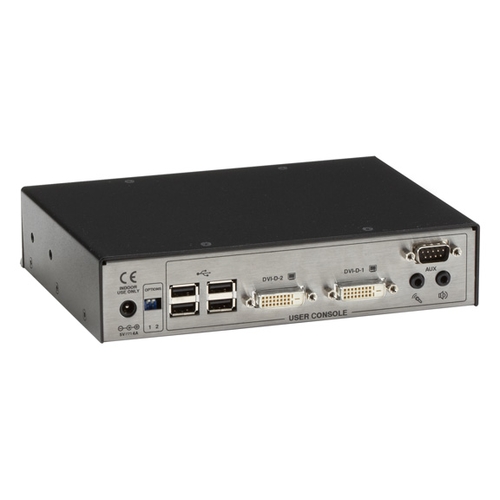

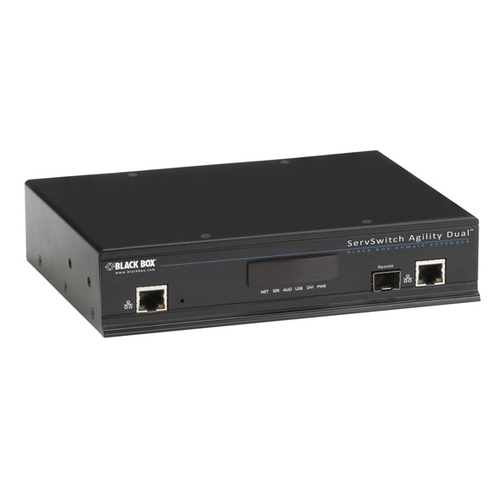

ACR1002A-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1002A-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1020A: Extender Kit, (2) Single link DVI-D, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1020A-T: Transmitter, (2) Single link DVI-D, 2xDVI-D, 2xAudio, USB 2.0, RS232
ACR1020A-R: Receiver, (2) Single link DVI-D, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1020A-R: Receiver, (2) Single link DVI-D, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1002A-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
ACR1002A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232
ACR1012A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232
ACR1012A-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, 2xAudio, USB 2.0, RS232


Agility DVI, USB, and Audio Extenders over IP


Flexible extension of DVI-D, USB, audio and serial via Direct Connect or IP Networks.


  • Dual CATx/SFP link interfaces offer flexibility on link media (CATx or fibre) as well as hot redundancy or bandwidth aggregation.
  • Distances up to 100m over direct CATx links, 10km over fiber or unlimited using a standard network.
  • Supports DVI-D video, USB HID, USB 2.0, serial and bi-directional analogue audio.
  • Choose between Single Link DVI (1920x1200), Dual Head DVI (2x 1920x1200/1080p), and Dual Link DVI (2560x1600/2kx2k) versions.
  • No-loss compression, low latency, pixel-perfect video, and control.
  • Emulation for K/M and other standard USB HIDs such as touch screens or flash drives.
  • Completely fan-less, zero-noise operation.

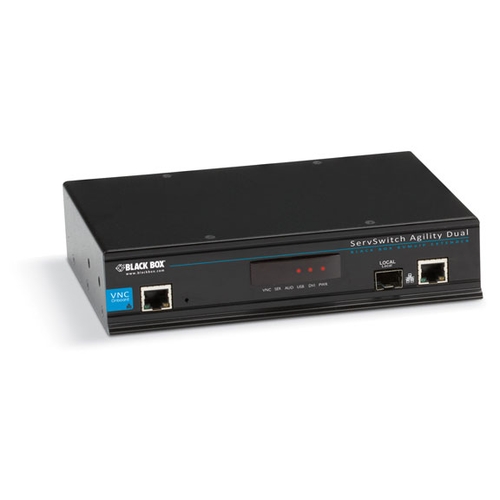

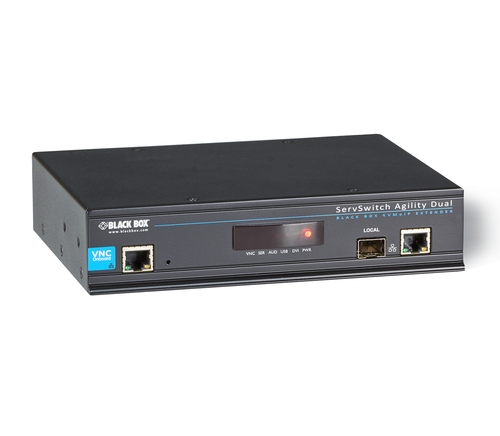

  • ACR1012A-T offers out-of-band access via VNC to the attached computer via VNC down to the BIOS-level.
  • Plug-and-Play Installation.

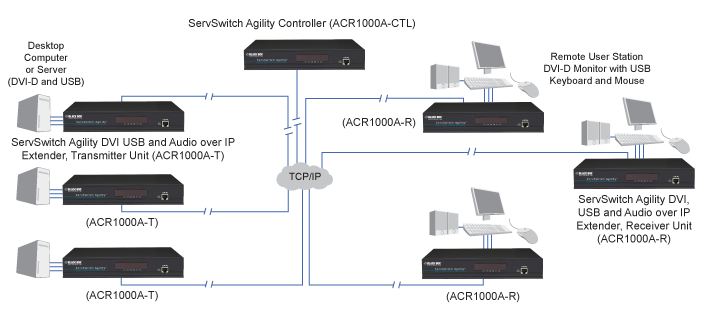

  • Start from point-to-point KVM extension and migrate easily into KVM matrix switching using the iPath Controller.

  Product       Code   Unit price   Stock   Quantity
Extender Kit
(1) Single link DVI

DVI-D, 2xAudio, 4xUSB 2.0, RS232
  Agility Extender Kit
Agility Extender Kit
  ACR1000A-R2 End of Life
€ 2.621,00
  5
(2) Single link DVI-D

2xDVI-D, 2xAudio, 4xUSB 2.0, RS232

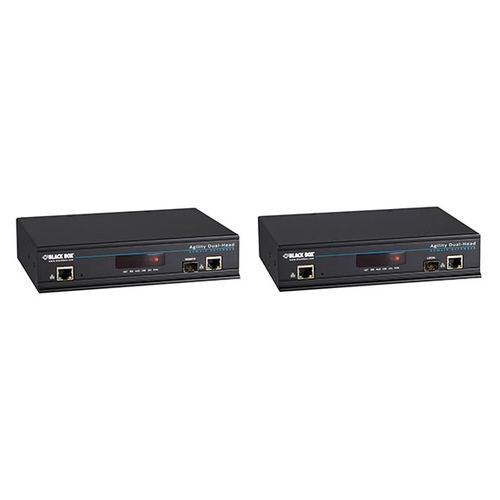

  Agility Dual DH Extender Kit
Agility Dual DH Extender Kit
  ACR1020A
On request
  0
Receiver
(1) Single link DVI

DVI-D, 2xAudio, 4xUSB 2.0, RS232
  Agility Receiver
Agility Receiver
  ACR1000A-R-R2
On request
  5
(2) Single link DVI-D

2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
  Agility Dual DH Receiver
Agility Dual DH Receiver
  ACR1020A-R
On request
  0
(2) Single link or (1) Dual link DVI

2xDVI-D, 2xAudio, 4xUSB 2.0, RS232
  Agility Dual DL Receiver
Agility Dual DL Receiver
  ACR1002A-R
€ 1.476,00
  0
Transmitter
(1) Single link DVI

DVI-D, 2xAudio, USB 2.0, RS232
  Agility Transmitter
Agility Transmitter
  ACR1000A-T-R2
On request
  33
(2) Single link DVI-D

2xDVI-D, 2xAudio, USB 2.0, RS232

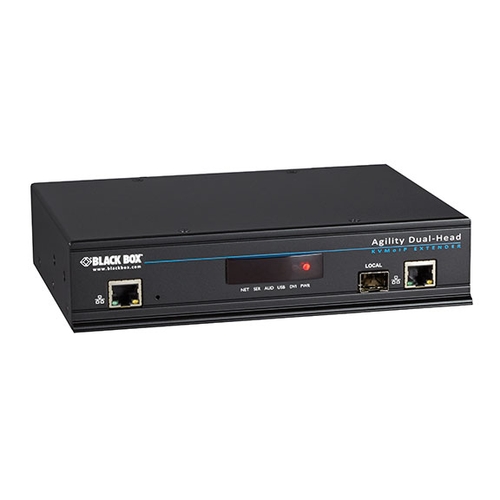

  Agility Dual DH Transmitter
Agility Dual DH Transmitter
  ACR1020A-T
On request
  0
(2) Single link or (1) Dual link DVI

2xDVI-D, 2xAudio, USB 2.0, RS232
  Agility Dual DL Transmitter
Agility Dual DL Transmitter
  ACR1002A-T
On request
  32

2xDVI-D, 2xAudio, USB 2.0, RS232

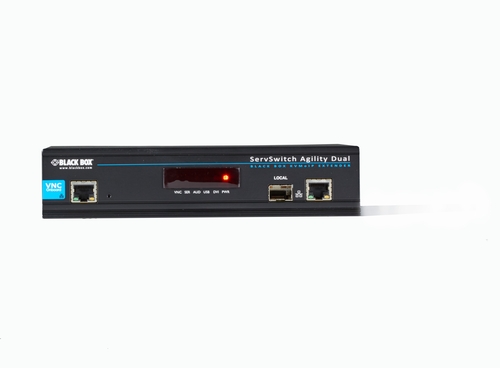

  ServSwitch Agility Dual VNC
ServSwitch Agility Dual VNC
  ACR1012A-T
On request
  0
EOL Indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items. The Extender kit consist of one transmitter and one receiver each.

Accessories

  Product     Code   Unit price   Stock   Quantity

  Zero U KVM-over-IP DVI Transmitter , Agility - Transmitter, (1) Single link DVI, USB 2.0
Zero U KVM-over-IP DVI Transmitter , Agility
  ACR500DV-T
€ 734,00
  7
  Zero U KVM-over-IP DVI Transmitter , Agility - Transmitter, (1) DisplayPort, USB 2.0
Zero U KVM-over-IP DVI Transmitter , Agility
  ACR500DP-T-R2
On request
  1
  ZeroU KVM over IP Transmitter , Agility - Transmitter, (1) HDMI, USB 2.0
ZeroU KVM over IP Transmitter , Agility
  ACR500HDMI-T
On request

  Central Power Hub - 8 ports
Central Power Hub
  ACR1000-CPH8R-R2
On request

  Central Power Hub - 16 port
Central Power Hub
  ACR1000-CPH16R-R2
On request

Power Supply
  Spare or Redundancy Power Supply for Central Power Hub
Spare or Redundancy Power Supply for Central Power Hub
  ACR1000-CPH-PS-R2
€ 448,00

  Central Power Hub - 16 port
Central Power Hub
  ACR1000-CPH16R
€ 2.138,00
  0
Rack/Mount Kit
  19" Rackmounting Kit 1U for Single Unit
19" Rackmounting Kit 1U for Single Unit
  RMK2004
€ 63,27
  0
  KVM Extender Rackmount Kit for 2 units
KVM Extender Rackmount Kit for 2 units
  RMK2104
€ 130,00
  12
  VESA Mount Bracket for the KVM Agility
VESA Mount Bracket for the KVM Agility
  ACR1X-VESA
€ 37,61
  8
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
€ 58,43
  99+
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
€ 87,66
  24
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
€ 64,48
  99+
  iPATH Upgrade Licence - Controller Upgrade, from 24 to 48 endpoints
iPATH Upgrade Licence
  IPATHLIC-48
On request

  iPATH Upgrade Licence - Controller Upgrade, from 24 to 96 endpoints
iPATH Upgrade Licence
  IPATHLIC-96
On request

  iPATH Upgrade Licence - Controller Upgrade, from 24 to 192 endpoints
iPATH Upgrade Licence
  IPATHLIC-192
On request

  iPATH Upgrade Licence - Controller Upgrade Hub+Spoke Bundle, from 24 to 192 endpoints
iPATH Upgrade Licence
  IPATHLIC-192-BCK
On request

  iPATH Upgrade Licence - Controller Upgrade, from 24 to 288 endpoints
iPATH Upgrade Licence
  IPATHLIC-288
On request

  iPATH Upgrade Licence - Controller Upgrade, from 24 to unlimited endpoints
iPATH Upgrade Licence
  IPATHLIC-ULT
On request

  iPATH Upgrade Licence - Controller Upgrade Hub+Spoke Bundle, from 24 to 48 endpoints
iPATH Upgrade Licence
  IPATHLIC-48-BCK
On request

  iPATH Upgrade Licence - Controller Upgrade Hub+Spoke Bundle, from 24 to 96 endpoints
iPATH Upgrade Licence
  IPATHLIC-96-BCK
On request

  iPATH Upgrade Licence - Controller Upgrade Hub+Spoke Bundle, from 24 to 288 endpoints
iPATH Upgrade Licence
  IPATHLIC-288-BCK
On request

  iPATH Upgrade Licence - Controller Upgrade Hub+Spoke Bundle, from 24 to unlimited endpoints
iPATH Upgrade Licence
  IPATHLIC-ULT-BCK
On request
