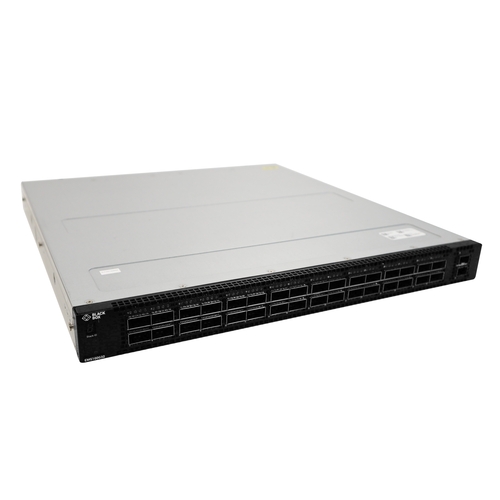

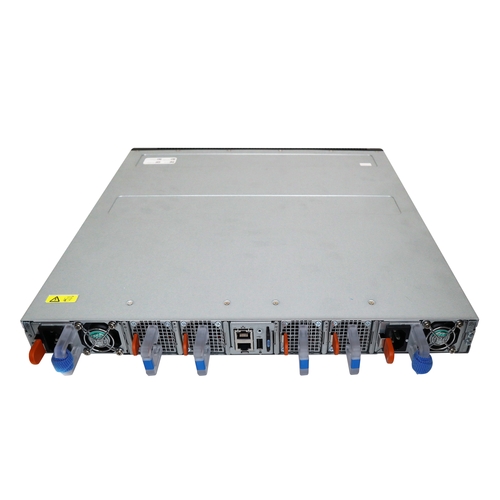

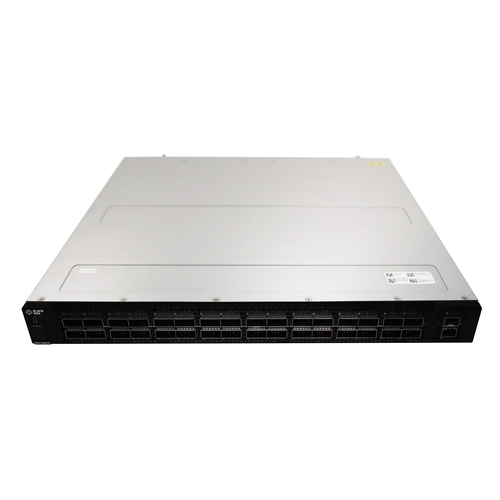

Emerald® KVM over IP Matrix Switch, 100GbE, 32-Port
Photo may vary from actual product
EMS100G32-R2: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
EMS100G32-R2: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G


Emerald® KVM over IP Matrix Switch, 100GbE, 32-Port

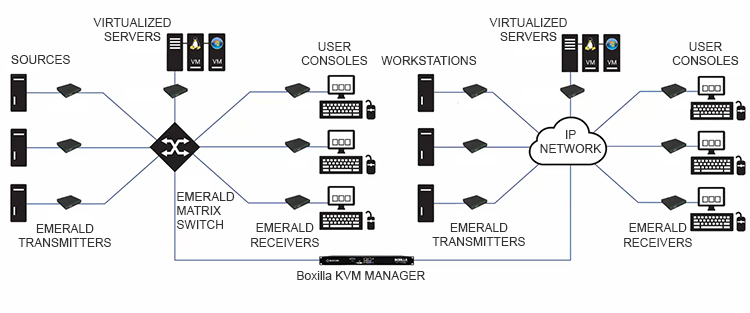

Create a free configurable KVM over IP Switching Matrix and Extension system connecting your Emerald transmitters and receivers via IP


  • Use with any type of Emerald transmitters and receivers to create a powerful KVM over IP Switching Matrix.
  • Up to 6.4Tbps of switching I/O bandwidth (full duplex) available and non-blocking switching fabric delivering line-rate performance under full load with sub usec latency.
  • 1RU high-density switch with (32) 100Gbps (QSFP28) and two SFP+ 1/10G cages.
  • Scalable L2 and L3 Ethernet switching with QOS and a full complement of standards-based IPV4 and IPV6 features, including OSPF and BGP routing support.
  • L2 multipath support via virtual link trunking (VLT) and multiple VLT multi-chassis link aggregation technology.
  • L2 multipath support via virtual link trunking (VLT) and multiple VLT multi-chassis link aggregation technology.
  • Open automation framework adding automated configuration and provisioning capabilities to simplify management of network environments.
  • Jumbo frame support for large data transfers.
  • Jumbo frame support for large data transfers.
  • 128 link aggregation groups with up to (8) members per group, using enhanced hashing.
  • Power-efficient operation up to 45°C, helping to reduce cooling costs in temperature-constrained deployments.
  • Redundant, hot-swappable power supplies and fans.
  • I/O panel to power supply airflow or power supply to I/O panel airflow.
  • Tool-less mounting kits reduce time and resources for switch rack installation.

  Product       Code   Unit price   Quantity
KVM over IP
100G

(32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
  100G Emerald KVM over IP Matrix Switch
100G Emerald KVM over IP Matrix Switch
  EMS100G32-R2
On request

Please contact our Sales department.

Accessories

  Product     Code   Unit price   Quantity

  QSFP28, 100-Gbps, OM4, MPO - 70m, MPO, OM3
QSFP28, 100-Gbps, OM4, MPO
  QSFP441-R2
€ 675,00

  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-T-R2
On request

  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-R
On request

  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (2) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2002SE-R
On request

  QSFP28, 100-Gbps, WDM Single-mode - 10km, LC Duplex, OS1 WSM
QSFP28, 100-Gbps, WDM Single-mode
  QSFP442
€ 4.405,00

  SFP+, 10-Gbps - LC, MM 850nm, 300m
SFP+, 10-Gbps
  LSP441
€ 74,58

  SFP+, 10-Gbps - LC, Single-mode 1310nm, 20km
SFP+, 10-Gbps
  LSP442
€ 119,00

  SFP+, 10-Gbps, LC, 850nm, Multi-mode - 850nm MM LC, 300m
SFP+, 10-Gbps, LC, 850nm, Multi-mode
  LSP421
€ 181,00

  SFP+, 10-Gbps, LC, 1310nm, Single-mode - 1310nm SM LC, 10km
SFP+, 10-Gbps, LC, 1310nm, Single-mode
  LSP422
€ 374,00

  QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible - 3m
QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible
  QSFP-100G-AOC3M-BB
€ 568,00

  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 1m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU1M-BB
€ 23,35

  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB
€ 115,00

  Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Transmitter
Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio
  EMD4000T
On request

  Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Receiver
Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio
  EMD4000R
On request

  ControlBridge® Touch Panel - 12"
ControlBridge® Touch Panel
  CB-TOUCH12-T
On request

  ControlBridge® Touch Panel - 7"
ControlBridge® Touch Panel
  CB-TOUCH7-T
On request

  Freedom II KM Switch with Glide & Switch Mouse Switching - 4 ports
Freedom II KM Switch with Glide & Switch Mouse Switching
  KV0004A-R2
€ 710,00
