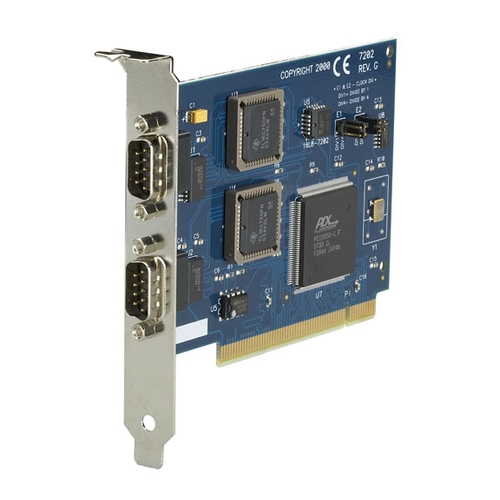

RS232 PCI Card

When you need to add two, four, eight or 16 serial PCI ports to your personal computer, select a PCI card from Black Box. The cards are designed to maximize DOS, Linux®, OS/2®, QNX, Windows® 3.1x/95/98/2000/Me/XP, Windows NT®, and UNIX® communications. Windows drivers, utilities, INF files, and help files are included to simplify installation. All cards includes an ISP port for IRQ sharing.

IC188C-R2 PCI low profile card
provides up to 4 PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices. 16854 UART eliminates data bottlenecks and enables your CPU’s onboard serial ports to achieve 460.8 Kkbps sustained data rates.

IC190C-R2 PCI low profile card
provides up to 8 PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices. 16854 UART eliminates data bottlenecks and enables your CPU’s onboard serial ports to achieve 460.8-kbps sustained data rates.

IC1600C PCI card
Provides up to 16 PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices. 16854 UART eliminates data bottlenecks and enables your CPU’s onboard serial ports to achieve 460.8-kbps sustained data rates.

IC143C-R2 PCI card
provides two PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices.

IC142C PCI card
provides up to 16 PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices and achieves 115.12 Kbps sustained data rates.

Distance (Maximum) — 15.2 m
Protocol — Asynchronous
Speed (Maximum) —
IC142C: 115.2 Kbps
IC143C-R2/IC188C-R2/IC190C-R2/IC1600C: 460.8 Kbps (burst)
Connectors —
IC142C: (1) DB78 F on card; (1) DB78 F and (8) DB25 M on included octopus cable
IC143C-R2: (2) DB9 M
IC188C-R2: (1) DB37 M on card; (1) DB37 F to (4) DB25 M on included cable
IC190C-R2: (1) DB78 F on card; (1) DB78 F and (8) DB25 M on included octopus cable
IC1600C: (2) VHDCI68 F on card; (2) included octopus cables, each with (1) VHDCI68 M and (8) DB25 M

Package Includes:
(1) Card
(1) Manual
(1) Cable (model dependent)
(1) Driver disk (model dependent)
