NBSALL8: Standard, (8) 10/100/1000TX RJ45 (all Pins)
Photo may vary from actual product
Pro Switching System 1U NBS
NBSALL8: Standard, (8) 10/100/1000TX RJ45 (all Pins)
NBSALL8MGR: Network Manageable, (8) 10/100/1000TX RJ45 (all Pins)

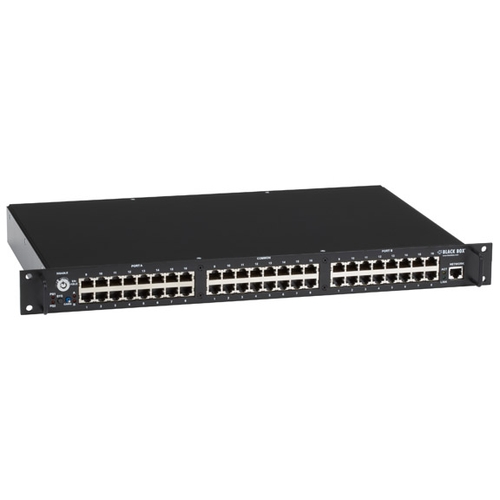

NBS016MA: Network Manageable, (16) 10/100TX RJ45 (pin 1,2 & 3,6)

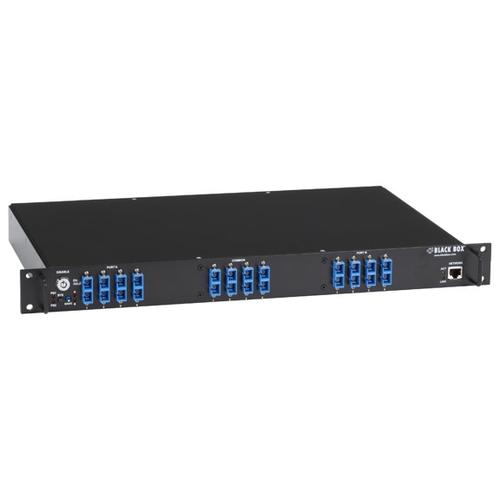

NBS004MA: Network Manageable, (4) 10/100FX MM SC

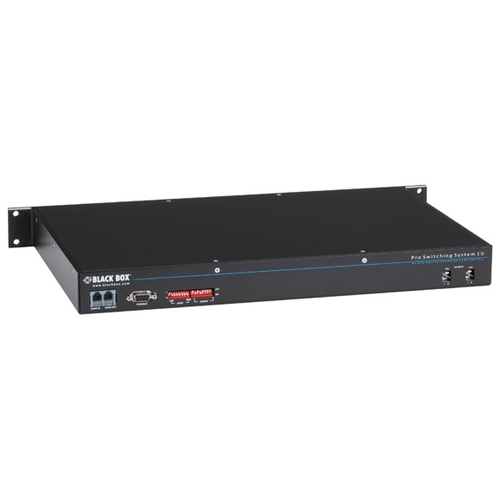

Pro Switching System 1U NBS


Prevent costly network downtime with this reliable A/B gang switching system.


  • Multiport switching to prevent lost productivity and business downtime.
  • Provides A/B switching between fiber SC multimode, 10/100 copper or 10/100/1000 copper terminated circuits.
  • Latches the A/B position to keep signals moving even if power is lost.
  • Enables individual or simultaneous (ganged) control of circuits.
  • Switch manually or electronically using a local RS-232 serial console or with the managed versions also remotely over a TCP/IP network.
  • Lockable switch with removable key for securing gang switching control.
  • Features highly reliable micro-mirror optical switching mechanisms (fibre versions).
  • Features highly reliable internal telecommunications relays. (copper versions).
  • Transparent to data rates, protocols, formats, and signal levels.
  • Supports connections up to Gigabit-speed fiber networks (NBSALL8).
  • Compact, 1U-high rackmountable chassis.
  • Includes dual power inputs for redundancy.
  • Daisychain multiple units for up to 4080 ports or 255 chassis.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
Standard

(8) 10/100/1000TX RJ45 (all Pins)
  Pro Switching System 1U NBS
Pro Switching System 1U NBS
  NBSALL8
€ 1.027,00

Network Manageable

(4) 10/100FX MM SC
  Pro Switching System 1U NBS
Pro Switching System 1U NBS
  NBS004MA
€ 3.676,00


(8) 10/100/1000TX RJ45 (all Pins)
  Pro Switching System 1U NBS
Pro Switching System 1U NBS
  NBSALL8MGR
€ 1.332,00


(16) 10/100TX RJ45 (pin 1,2 & 3,6)
  Pro Switching System 1U NBS
Pro Switching System 1U NBS
  NBS016MA
€ 1.396,00
